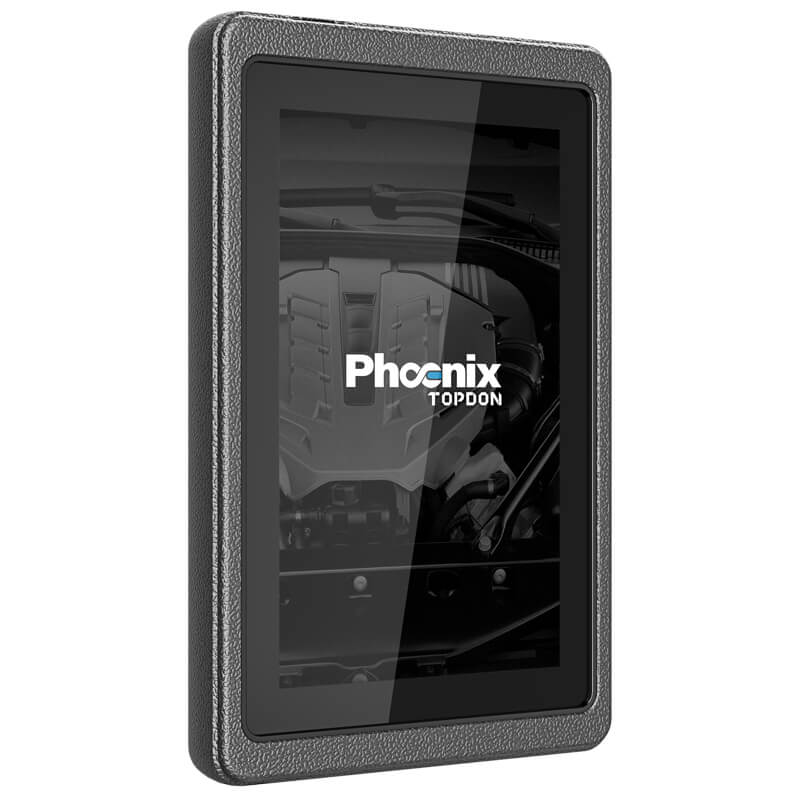

Phoenix - Compact Advanced-Level professional diagnostic tool with adapter set

The Phoenix is an advanced-level, fully capable, professional diagnostic tool that blends dealer level diagnostic software with high-quality small frame hardware. The Phoenix provides the user with the ability to perform advanced functions like module coding, bi-directional testing, data display and recording, data graphing, and more. Designed especially for advanced-level technicians wanting to purchase a diagnostic tool or the budget-conscious shop that needs high-level functionality at an affordable price, the Phoenix is the best blend of functionality and affordability.


FEATURES
  • The TOPDON Phoenix includes a full system vehicle trouble diagnosis for more than 108 US, Asian, and European vehicle makes and models
  • The Phoenix also features in-depth vehicle system coverage for ALL electronic systems you'll find on today’s modern automobiles
  • This OBDII diagnostic scanner comes equipped with compact size and lightweight feature for easy carrying, and user-friendly interface specially designed for the Android platform for pleasant user experience
  • The OBDII adapter is wireless, allowing you to diagnose a vehicle from anywhere easily
  • Reset feature allows quick access to common procedures like oil service reset, steering angle sensor calibrations, DPF regen, and more
  • The tool itself is in rugged housing designed to withstand drops and damages
  • This Android 5.1 based 6.9-inch touchscreen tablet is Bluetooth & Wi-Fi enabled
  • Includes remote diagnostic service, and it boasts a 1.3 GHz quad-core processor for lightning-fast car diagnostics

    Phoenix Brochure

    Phoenix Line Comparison Chart



    SPECIFICATIONS

    Display Screen: 7.0-inch HD High-Resolution LCD (touchscreen)

    Camera: Front and rear-facing cameras

    OS: Android 7.0

    Processor: Quad-core 1.3 GHz, with 2GB of processor memory and 16GB of onboard storage

    Camera: Rear 5.0 Megapixel, front 2.0 Megapixel

    Battery: 3000mAh rechargeable lithium-polymer battery

    Connectivity: Bluetooth 4.1, WLAN 802.11b, g,n

    Working Voltage: 9-18v

    Operating Temperature: 14°F-122°F

    Bluetooth Range: Within 109 Feet

    Dimensions: 16.14” x 4.35” x 12.2"

    PACKAGING LIST

    1-ArtiMINI Tablet

    1-VCI Module

    1-OBDII Extension Cable

    1-OBDII Adapter

    10-OBDII Vehicle Adapter Set

    1-Battery Clamps Cable

    1-User Manual

    1-Password Envelope

    1-USB Power Adapter

    1-USB Cable

    1-User Manual

    WARRANTY & UPDATES

    One Year Warranty

    One Year of Updates

    SHIPPING

    Free Ground Shipping in the USA

    RETURN & REFUND POLICY

    30-Day Money-Back Guarantee
